January 3, 2005 - Left Wing

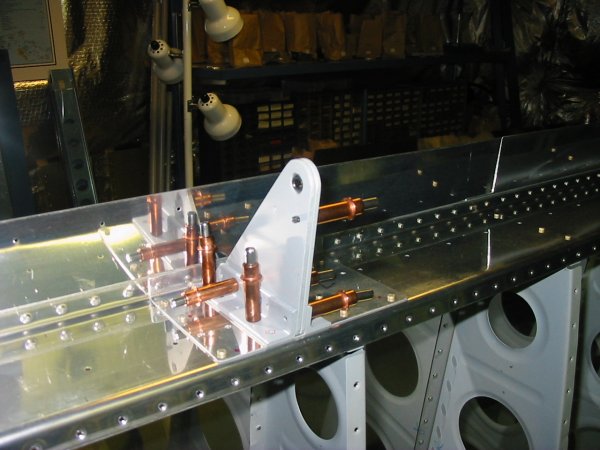

This is the outboard aileron bracket.
The inboard bracket.
January 3, 2005 - Left Wing |
||||||
|
I clecoed the aileron brackets together and then to the rear spar.
Then I match-drilled them. For some reason, I primed them early, but
I will have to prime them again after deburring. You'd think I'd
know the drill by now: cleco together, match drill, disassemble,
deburr, dimple, prime, cleco together, rivet.
This is the outboard aileron bracket. |
||||||
|
|
||||||
|
The inboard bracket.
|
||||||
|
|
||||||

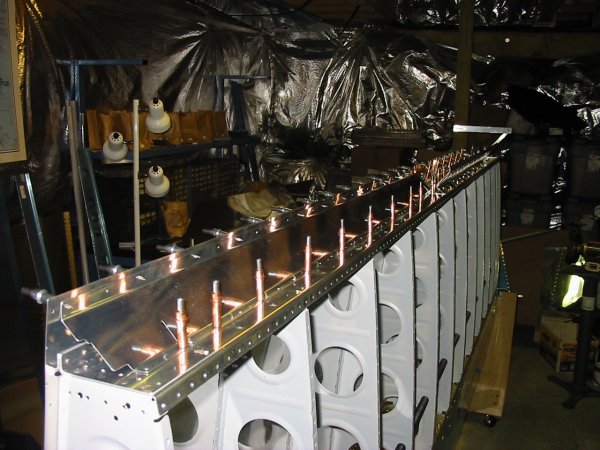

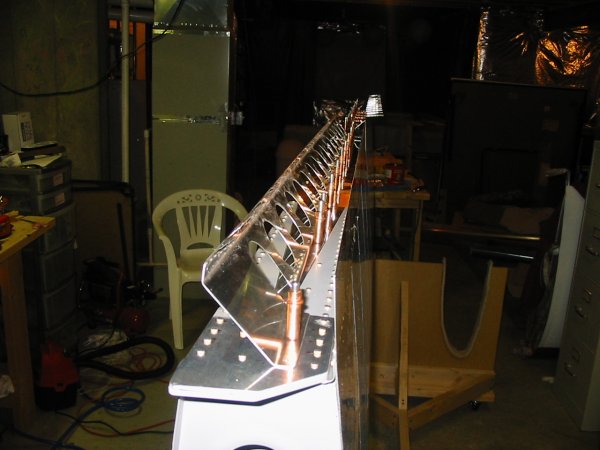

| Next I clecoed on the aileron gap fairing and match-drilled it to the rear spar and top skin. | ||||||
|
|
||||||
| Then I did the same with the flap brace. | ||||||
|
|
||||||
| I have to go to Ottawa, Ontario, Canada on business so no building for the next four days. | ||||||
