October 18, 2012 - EAA Chapter Meeting at the House

This month, my EAA Chapter had its monthly meeting at my house so they could see the Triplane project.   I cleaned up the shop.  Let me tell you, it was as clean as its been in a long time.

Here the Chapter members are checking out my Plans.   In the background is the "welding room".

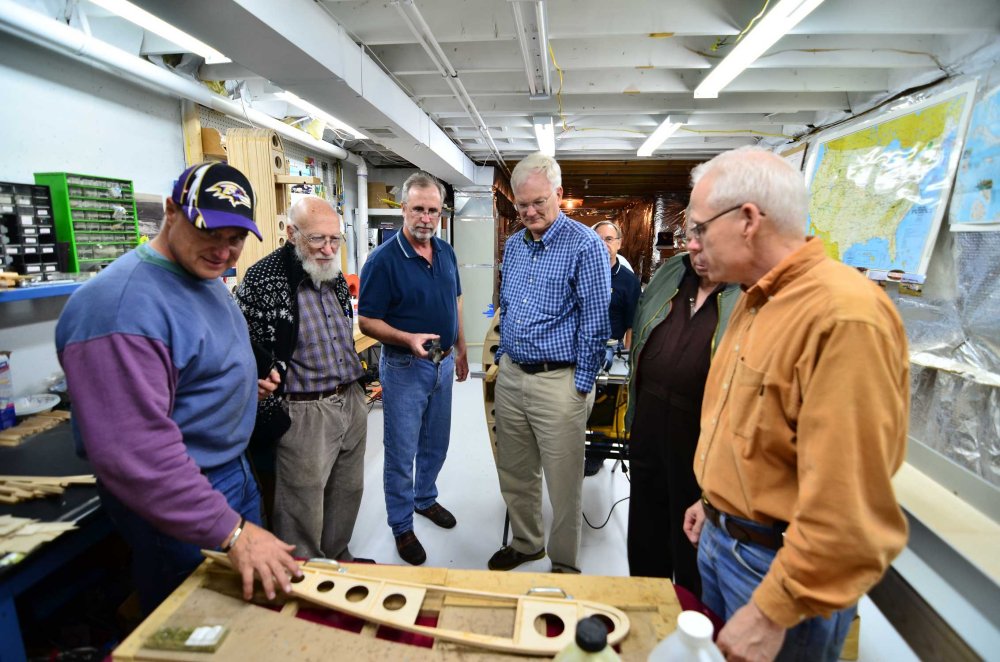

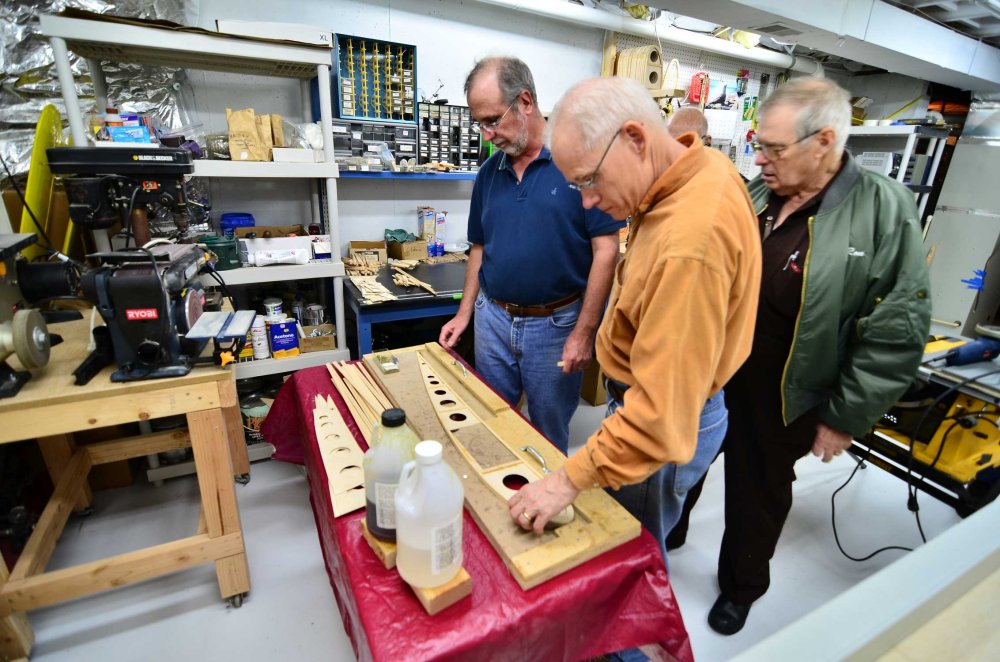

Showing the members the Rib jig.

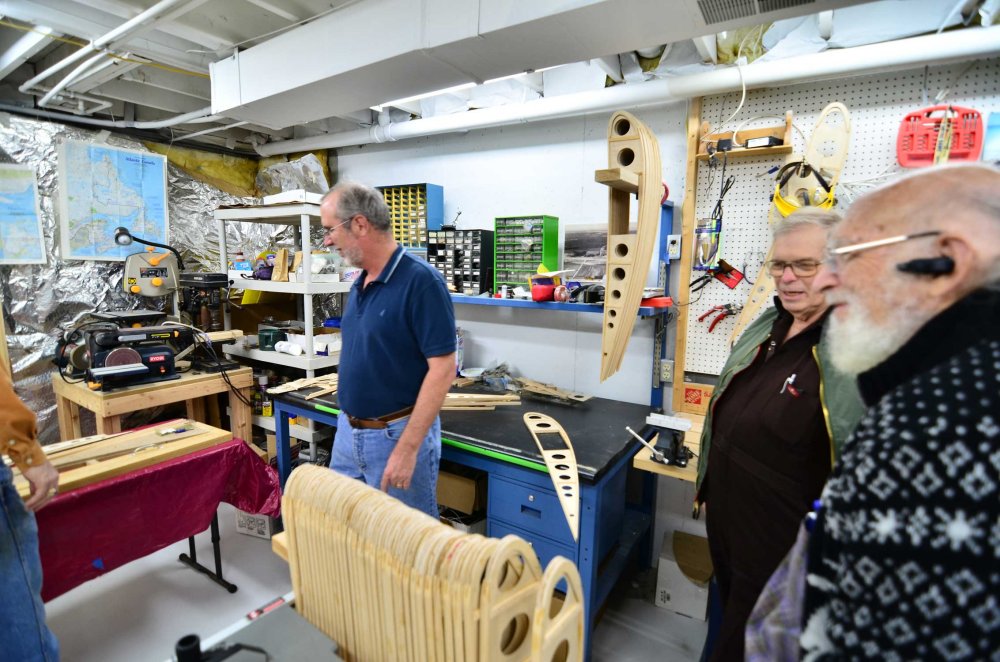

Showing off some finished ribs.

I have finished all the regular ribs and most of the doubler ribs.  Only the wingtip ribs are left.  They are different than the regular ribs as you might imagine.

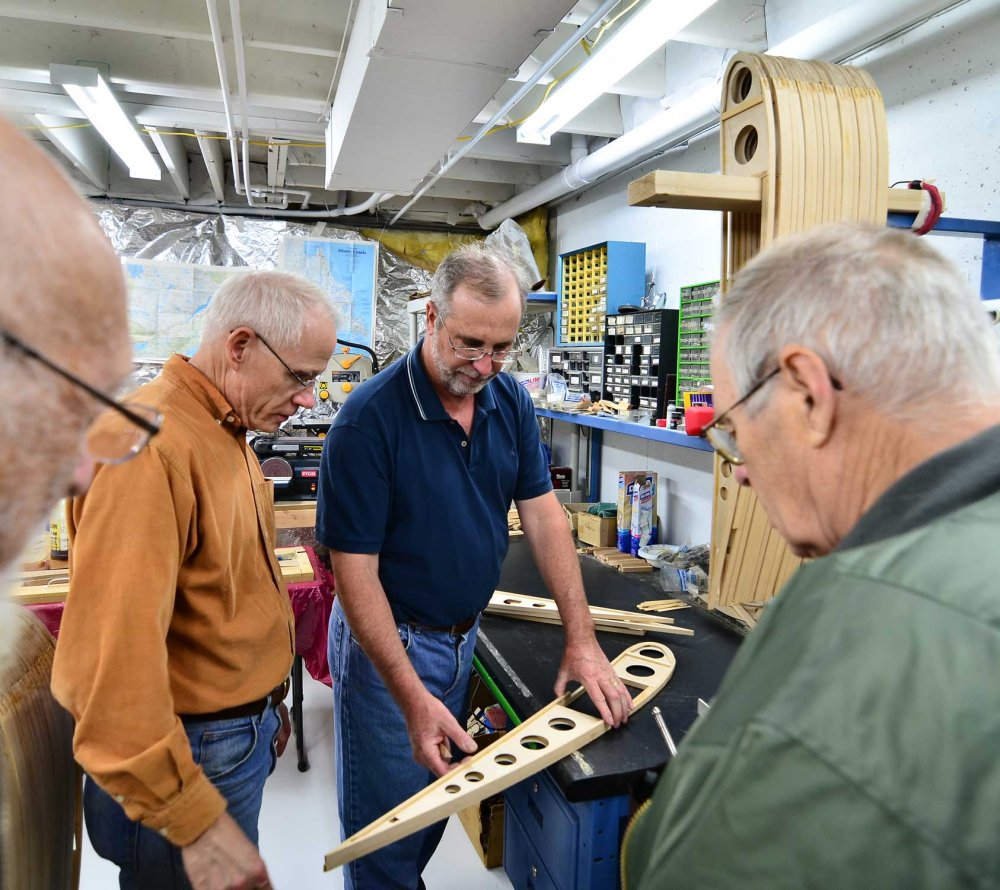

A better look at the rib jig.

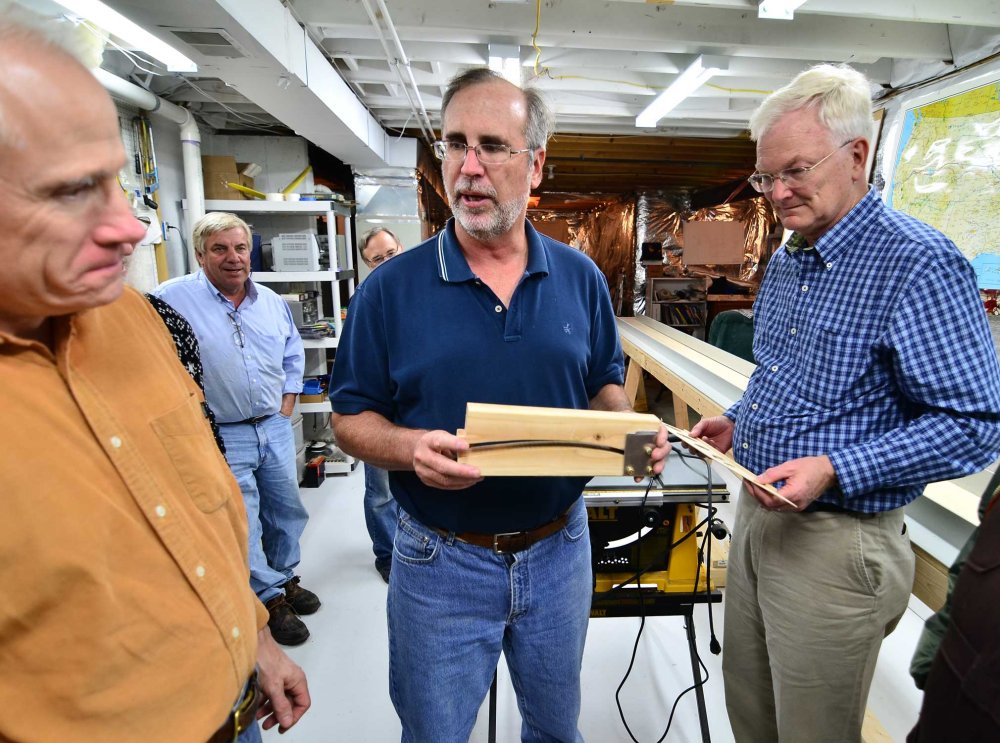

Explaining how the Capstrip bending jig works.

I think the members liked the Triplane project because it is old school: plans, wood and steel tube.

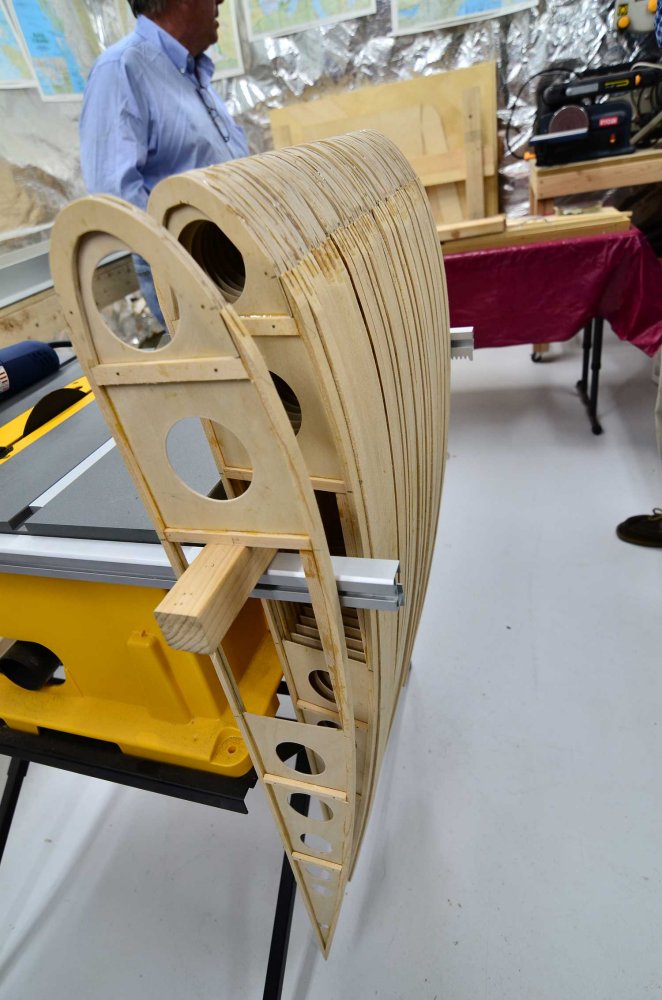

Ribs.  Look how clean and uncluttered that workbench is!

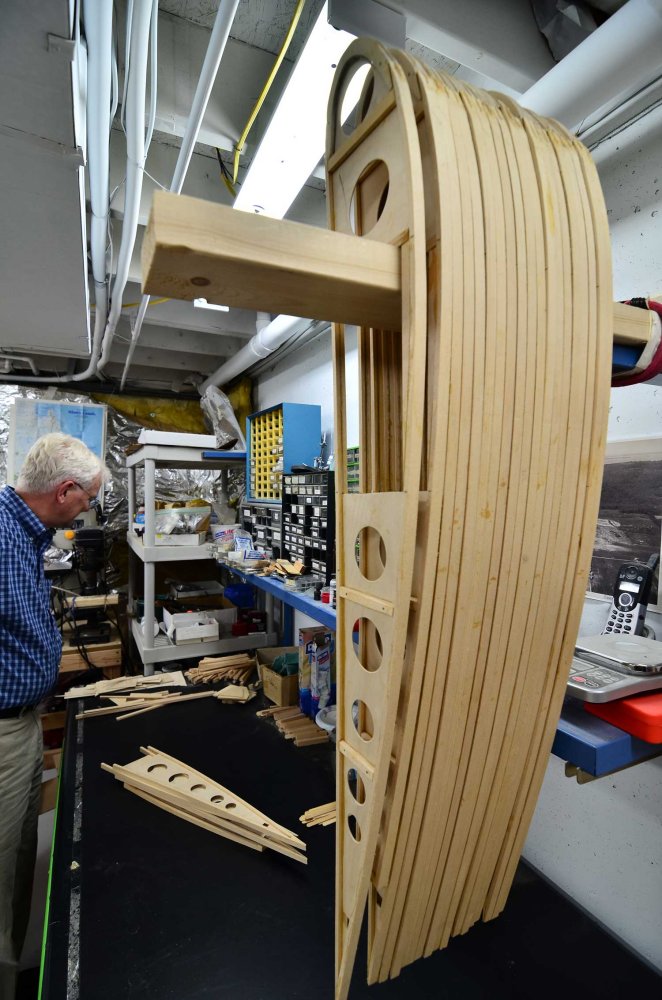

And more ribs.

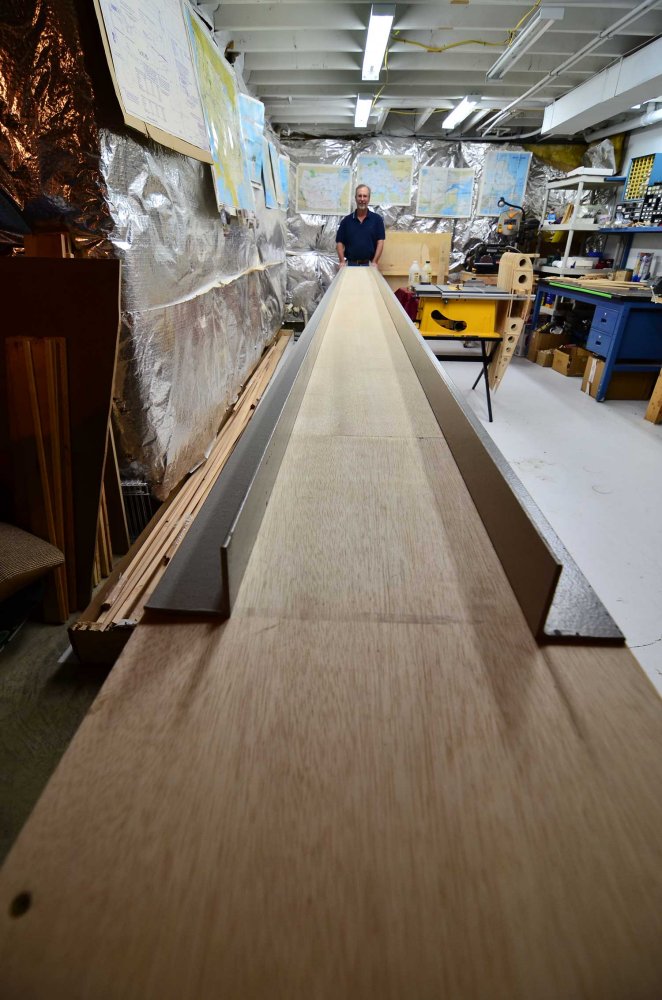

Showing off the spar table.  Won't be long before I start building the rectangular box spars.
