March 12, 2008 - Air Vent Brackets

Looking from the inside. The air vent itself screws into the two bracket holes and the one hole on the panel. I glued #6 nuts on the backside of the bracket. There wasn't enough real-estate to put nutplates in.

March 12, 2008 - Air Vent Brackets

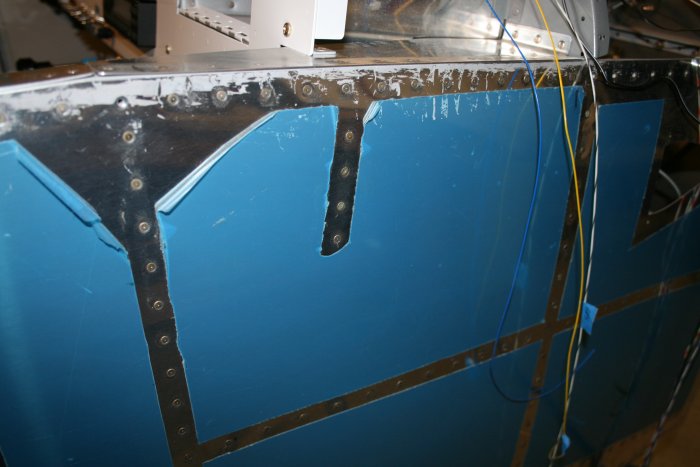

I finally got around to riveting the air vent brackets on the fuselage sides. Four holes on each side.

Looking from the inside. The air vent itself screws into the two bracket holes and the one hole on the panel. I glued #6 nuts on the backside of the bracket. There wasn't enough real-estate to put nutplates in.
