July 1, 2005 - F704 Bulkhead
A riveting action shot.
From another angle.
July 1, 2005 - F704 Bulkhead |
||||||

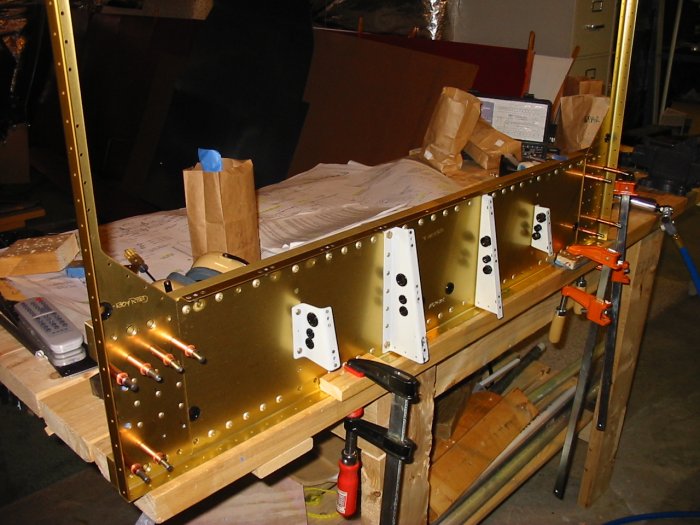

| It's rivet time. First I riveted the cover supports and bulkhead stiffener (on the far side). Then I riveted the bulkhead sides. It was mostly done with AN470-4-5s. The riveting went very well for some reason. There were no smiles; no rivets had to be drilled out. I think I found the perfect pressure for the 4 rivets and my 2 gun: 68psi. I also used blue tape on the rivet set. | ||||||
|
|
||||||
|
A riveting action shot.
|
||||||
|
|
||||||
|
From another angle.
|
||||||
|
|
||||||
|
|
||||||
