August 16, 2005 - Fuselage BulkheadsF-707, F-708, F-709, F-710 |
||||||

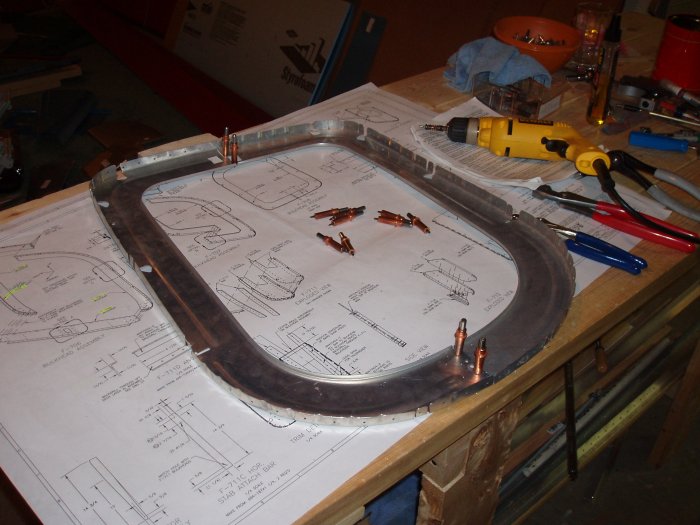

| I am really starting to make some good progress on the bulkheads. The F-707 consists of just two pieces. You just cleco them together and drill some 5/8" rudder cable holes with the unibit. | ||||||
 |
||||||
|

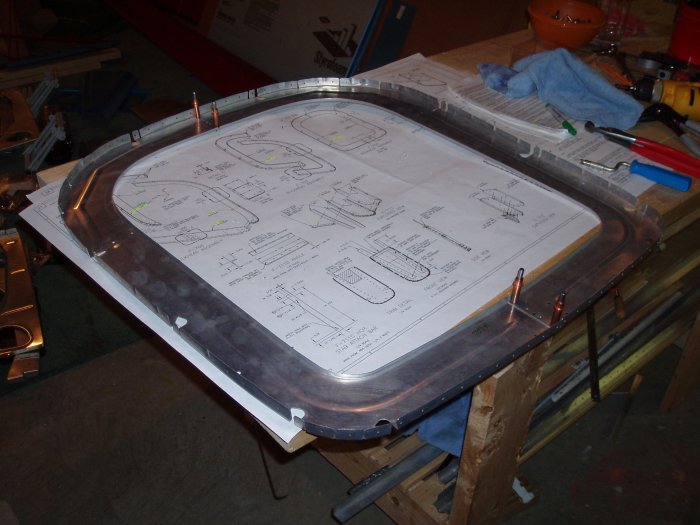

Then it's on to the F-708. Same deal -- cleco the two halves
together and drill the rudder cable holes.
|
||||||
 |
||||||

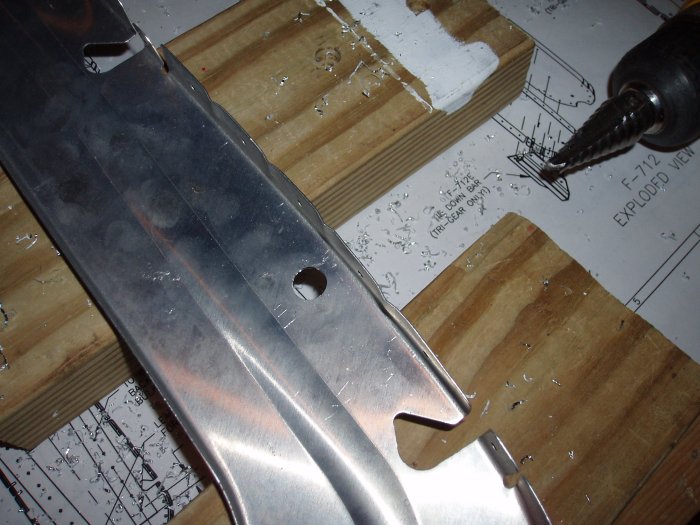

| Aforementioned rudder cable hole. Mr. Unibit makes it easy. | ||||||
 |
||||||
|

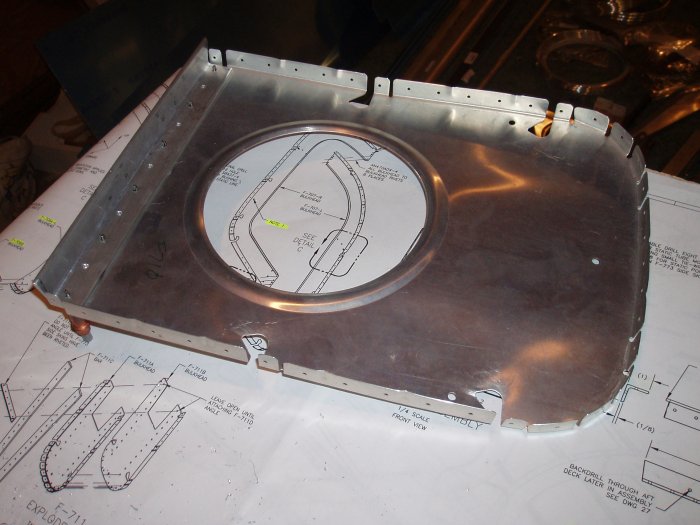

The F-710 consists of a single piece seen here with an angle across the
top.
|
||||||
 |
||||||

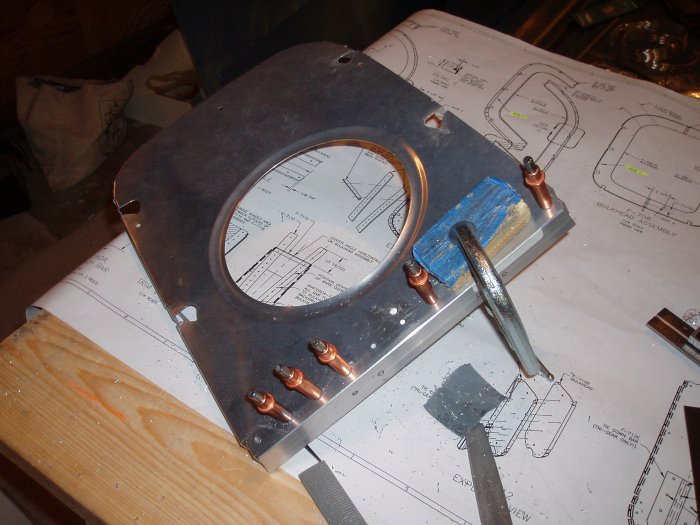

| Match-drilling the angle to the F-710. | ||||||
 |
||||||

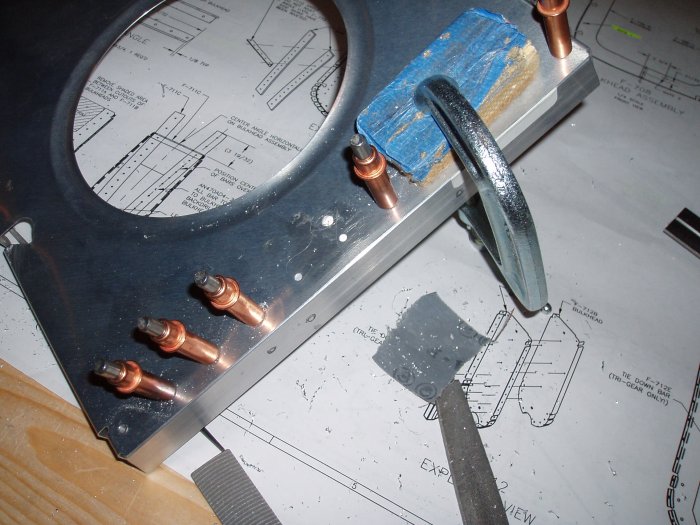

| Another view. | ||||||
 |
||||||

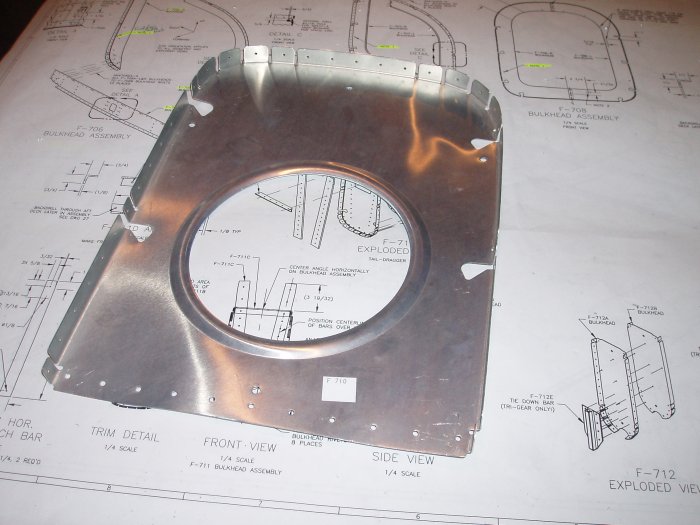

| F-710 complete. | ||||||
 |
||||||
|

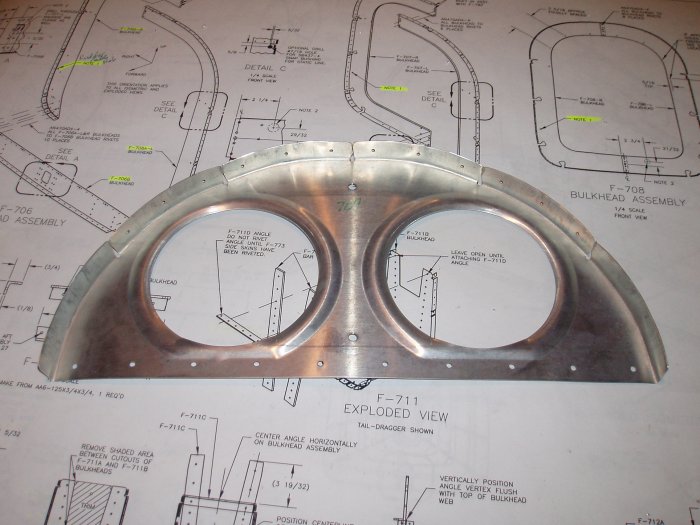

The F-709. This is it. No work required, other than the
usual edge-smoothing and de-labeling.
|
||||||
 |
||||||
